5 Defining an index of racial bias in traffic stops
Let’s briefly take stock of where we are. We started with a massive dataset (over 3,000,000 observations) of traffic patrol stops in the state of Colorado over the course of almost a decade. Over several steps, we worked our way to a county-level dataset containing information on the total number of traffic stops, and the number of those stops involving a Black motorist, over the course of the year 2010. That dataset looks something like this:
# Prints contents of "co_county_black_stops"
co_county_black_stops# A tibble: 64 × 3
# Rowwise: county_name
county_name black_stops total_stops
<chr> <int> <int>
1 Adams County 1208 34350
2 Alamosa County 43 4478
3 Arapahoe County 1819 17520
4 Archuleta County 28 5091
5 Baca County 61 1511
6 Bent County 46 1808
7 Boulder County 192 13053
8 Broomfield County 22 1095
9 Chaffee County 37 6521
10 Cheyenne County 38 1106
# … with 54 more rowsNow, let’s think about how to use this information to develop a measure of the extent to which traffic police stops may have been driven by racial bias (whether conscious or unconscious) against Black motorists. We might expect that in a discrimination-free world, the share of traffic stops for a given racial group will reflect that group’s share of the overall adult (over-17) population (we’ll consider the over-17 population as our baseline, since that is the demographic eligible to drive). For example, if the Black percentage of a given county’s adult population is 5%, we could form a simple baseline expectation that in a discrimination-free world where “driving while Black” is not effectively criminalized, the percentage of traffic stops involving Black motorists would not exceed 5%. To the extent that the percentage of traffic stops involving Black motorists did exceed 5%, we might assume a statistical pattern consistent with racial discrimination.
Based on this logic, a simple county-level indicator of anti-Black bias in traffic stops would simply be the difference between the percentage of traffic stops in a given county involving Black motorists, and the percentage of the county’s overall population that is Black:
County-Level Traffic Stop Bias Index= (Percentage of County Traffic Stops Involving Black Motorists)-(Percentage of County’s Adult Population that is Black)
As the value of this difference rises above 0, and we see higher positive values for this simple bias index, we might infer higher degrees of discrimination in traffic stops.
Of course, this is a very simple index, and sets aside many complexities (for example, commuting and driving patterns, among other things). However, despite its simplicity, the intuition behind the index is often used in the social science literature on the topic (Stelter et al., 2021); at least to a first approximation, therefore, this index will give us a meaningful way to identify counties in which the behavior of Traffic Patrol might merit greater public scrutiny, on account of disproportionately high stop-rates for the Black population.
Let’s create this index for Colorado counties in the year 2010. Note that we already have the data to compute the first part of the bias index (i.e. the percentage of traffic stops involving Black motorists); this is contained in co_county_black_stops:
# prints contents of "co_county_black_stops"
co_county_black_stops# A tibble: 64 × 3
# Rowwise: county_name
county_name black_stops total_stops
<chr> <int> <int>
1 Adams County 1208 34350
2 Alamosa County 43 4478
3 Arapahoe County 1819 17520
4 Archuleta County 28 5091
5 Baca County 61 1511
6 Bent County 46 1808
7 Boulder County 192 13053
8 Broomfield County 22 1095
9 Chaffee County 37 6521
10 Cheyenne County 38 1106
# … with 54 more rowsLet’s therefore turn to calculating the second part of the index: the percentage of each county’s population adult population that is Black. We’ll carry out this calculation using demographic data from the 2010 decennial census.
5.1 Read in 2010 census data
First, let’s read in the census dataset that was provided to you at the start of workshop (for more information on how the data was extracted, please see the tutorial’s Appendix) using the read_csv() function, and assign it to an object named co_counties_census_2010:
# Reads in census data and assigns to object named "co_counties_census_2010"
co_counties_census_2010<-read_csv("co_county_decennial_census.csv")
── Column specification ─────────────────────────────────────────────────────────────────────────────────────────
cols(
GEOID = col_character(),
County = col_character(),
total_pop = col_double(),
total_black_pop_over17 = col_double(),
total_pop_over17 = col_double()
)Let’s print the contents of this census dataset:
# Prints contents of "co_counties_census_2010"
co_counties_census_2010# A tibble: 64 × 5
GEOID County total_pop total_black_pop_over17 total_pop_over17
<chr> <chr> <dbl> <dbl> <dbl>
1 08023 Costilla County 3524 18 2788
2 08025 Crowley County 5823 556 5034
3 08027 Custer County 4255 37 3525
4 08029 Delta County 30952 139 24101
5 08031 Denver County 600158 45338 471392
6 08035 Douglas County 285465 2447 198453
7 08033 Dolores County 2064 4 1602
8 08049 Grand County 14843 43 11825
9 08039 Elbert County 23086 122 17232
10 08041 El Paso County 622263 27280 459587
# … with 54 more rowsNote that the “total_pop” variable contains county-level information on the overall population (i.e. all age groups and all racial categories), the “total_pop_over17” variable contains information on the adult (over-17) population (for all racial groups), and the “total_black_pop_over17” variable contains information on the adult (over-17) Black population for each county. We can use the latter two variables to compute the second part of the bias index we defined above.
5.2 Join census data to co_county_black_stops
Before calculating the second component of the bias index, however, so, , let’s join the census dataset we just viewed (co_counties_census_2010) to the dataset containing information on county-level police stops (co_county_black_stops); this will allow us to calculate both components of the bias index from the single dataset that results from this join.
The code below uses the full_join() function to join co_counties_census_2010 (the second argument), to co_county_black_stops (the first argument), using the “county_name” column (from co_county_black_stops) and the “County” column (from co_counties_census_2010) as the join fields; it assigns the dataset which results from the join to a new object named co_counties_census_trafficstops:
# Joins "co_counties_census_2010" to "co_counties_black_stops" using the
# "county_name" and "County" fields as the join fields; assigns the product
# of the join to an object named "co_counties_census_trafficstops"
co_counties_census_trafficstops<-
full_join(co_county_black_stops, co_counties_census_2010,
by=c("county_name"="County"))When we open co_counties_census_trafficstops, we should see information from both of the constituent datasets (co_county_black_stops and co_counties_census_2010):
# Prints contents of "co_counties_census_trafficstops"
co_counties_census_trafficstops# A tibble: 64 × 7
# Rowwise: county_name
county_name black_stops total_stops GEOID total_pop total_black_pop_over17 total_pop_over17
<chr> <int> <int> <chr> <dbl> <dbl> <dbl>
1 Adams County 1208 34350 08001 441603 9396 315480
2 Alamosa County 43 4478 08003 15445 142 11617
3 Arapahoe County 1819 17520 08005 572003 40558 424679
4 Archuleta County 28 5091 08007 12084 19 9676
5 Baca County 61 1511 08009 3788 15 2974
6 Bent County 46 1808 08011 6499 486 5403
7 Boulder County 192 13053 08013 294567 1961 231813
8 Broomfield County 22 1095 08014 55889 415 41237
9 Chaffee County 37 6521 08015 17809 264 14821
10 Cheyenne County 38 1106 08017 1836 4 1386
# … with 54 more rows5.3 Define the variables that will be used in the bias index
Now that we have all the information required to calculate both components of the bias index in one dataset, let’s calculate the constituent parts of the bias index. The code below takes the current co_counties_census_trafficstops object that we created above, and then uses the mutate() function to create two new variables. The first variable, named “black_stop_pct”, is defined as the percentage of traffic stops that involved a Black motorist. The second variable, named “black_pop_pct”, is defined as the percentage of a given county’s adult population that is Black. The dataset that includes these two new variables is assigned back to co_counties_census_trafficstops:
# Takes "co_counties_census_trafficstops" and then creates two new variables;
# one new variable is named "black_stop_pct" (the Black percentage of
# traffic stops) and the other is "black_pop_pct" (the Black percentage
# of the over-17 population; assigns the updated dataset back to
# co_counties_census_trafficstops"
co_counties_census_trafficstops<-
co_counties_census_trafficstops %>%
mutate(black_stop_pct=((black_stops/total_stops)*100),
black_pop_pct=((total_black_pop_over17/total_pop_over17)*100))Having created these two new variables (i.e. the components of the bias index we’ll calculate below) in co_counties_census_trafficstops, let’s view the updated dataset:
# Prints contents of "co_counties_census_trafficstops" object
co_counties_census_trafficstops# A tibble: 64 × 9
# Rowwise: county_name
county_name black_stop_pct black_pop_pct black_stops total_stops GEOID total_pop total_black_pop_over17
<chr> <dbl> <dbl> <int> <int> <chr> <dbl> <dbl>
1 Adams County 3.52 2.98 1208 34350 08001 441603 9396
2 Alamosa County 0.960 1.22 43 4478 08003 15445 142
3 Arapahoe County 10.4 9.55 1819 17520 08005 572003 40558
4 Archuleta County 0.550 0.196 28 5091 08007 12084 19
5 Baca County 4.04 0.504 61 1511 08009 3788 15
6 Bent County 2.54 9.00 46 1808 08011 6499 486
7 Boulder County 1.47 0.846 192 13053 08013 294567 1961
8 Broomfield County 2.01 1.01 22 1095 08014 55889 415
9 Chaffee County 0.567 1.78 37 6521 08015 17809 264
10 Cheyenne County 3.44 0.289 38 1106 08017 1836 4
# … with 54 more rows, and 1 more variable: total_pop_over17 <dbl>5.4 Calculate the bias index
Before using the county-level “black_stop_pct” and “black_pop_pct” variables we created above to generate county-level measures of our bias index, let’s first calculate an aggregated bias index for the state of Colorado as a whole.
The mini-script below uses the information in co_counties_census_trafficstops to calculate:
- The total number of traffic stops involving Black motorists across all counties (assigned to the
colorado_total_black_stopsobject) - The total number of traffic patrol stops across all racial categories (assigned to the
colorado_total_stopsobject). - The total adult (over-17)) Black population in Colorado (assigned to
colorado_adult_blackpopulation). - The total adult (over-17) population in Colorado, across all races (assigned to
colorado_adult_overall). - The percentage of traffic patrol stops involving a Black motorist in Colorado, by dividing
colorado_total_black_stopsbycolorado_total_stopsand multiplying by 100 (assigned toblack_stop_pct_CO). - The Black percentage of Colorado’s overall population, by dividing
colorado_adult_blackpopulationbycolorado_adult_overalland multiplying by 100 (assigned toblack_over17_population_pct_CO).
Finally, it uses black_stop_pct_CO and black_over17_population_pct_CO to generate a state-wide value for the bias index, by subtracting the latter from the former; this value is assigned to the object named CO_bias_index:
# Calculates the total number of Black traffic stops in Colorado and assigns
# the value to an object named "colorado_total_black_stops"
colorado_total_black_stops<-sum(co_counties_census_trafficstops$black_stops,
na.rm=T)
# Calculates the total number of traffic stops in Colorado and assigns the
# value to an object named "colorado_total_stops"
colorado_total_stops<-sum(co_counties_census_trafficstops$total_stops, na.rm=T)
# Calculates the total adult (over-17) Black population in CO and assigns the value to
# an object named "colorado_adult_blackpopulation"
colorado_adult_blackpopulation<-
sum(co_counties_census_trafficstops$total_black_pop_over17, na.rm=T)
# Calculates the total adult (over-17) population in CO and assigns the value to an
# object named "colorado_adult_overall"
colorado_adult_overall<-sum(co_counties_census_trafficstops$total_pop_over17,
na.rm=T)
# Calculates the percentage of CO traffic patrol stops involving a Black motorist
# and assigns the value to an object named "black_stop_pct_CO"
black_stop_pct_CO<-(colorado_total_black_stops/colorado_total_stops)*100
# Calculates the percentage of the Colorado's 17+ population that is Black and
# assigns the value to an object named "black_over17_population_pct_CO"
black_over17_population_pct_CO<-(colorado_adult_blackpopulation/
colorado_adult_overall)*100
# Calculates the bias index for the state of Colorado as a whole, by computing
# the difference between "black_stop_pct_CO" and
# "black_over17_population_pct_CO"; assigns the result to an object
# named "CO_bias_index"
CO_bias_index<-(black_stop_pct_CO)-(black_over17_population_pct_CO)Now, let’s print the value of CO_bias_index:
# Prints value of "CO_bias_index"
CO_bias_index[1] -1.112616Interestingly, the value of the aggregate state-level bias index we’ve calculated is negative; specifically, this result suggests that in 2010, the Black share of traffic stops in Colorado was about 1.11 percentage points less than the Black share of Colorado’s adult population. At first glance, this might suggest that “driving while black” was not criminalized in Colorado (during 2010, the year under consideration), according to our simple bias indicator.
However, it might still be the case that there are specific areas in the state where racial bias in traffic stops is a problem, and focusing on an aggregated state-level measure of the bias index obscures possible micro-level variation in patterns of anti-Black bias with respect to traffic stops. Documenting this micro-level variation is an important task, since it would allow us to identify “problem areas” that might be excessively punitive towards Black drivers. The remainder of the lesson attempts to document this county-level micro-geography of systemic bias in traffic stops (as measured by the index we’ve defined).
We’ll begin by creating a new variable in co_counties_census_trafficstops, which we’ll call “bias_index”, that contains the bias index for each county in the dataset (calculated by subtracting “black_pop_pct” from “black_stop_pct” for each county). The code below creates this new “bias_index” variable, and assigns the dataset with this new variable back to the co_counties_census_trafficstops object:
# Creates new variable in "co_counties_census_trafficstops" named "bias_index"
# that is defined as the difference between the existing "black_stop_pct" and
# "black_pop_pct" variables
co_counties_census_trafficstops<-
co_counties_census_trafficstops %>%
mutate(bias_index=black_stop_pct-black_pop_pct)Note that the county-level “bias_index” variable is now in the dataset assigned to the co_counties_census_trafficstops object:
# prints contents of "co_counties_census_trafficstops"
co_counties_census_trafficstops# A tibble: 64 × 10
# Rowwise: county_name
county_name bias_index black_stop_pct black_pop_pct black_stops total_stops GEOID total_pop total_black_pop…
<chr> <dbl> <dbl> <dbl> <int> <int> <chr> <dbl> <dbl>
1 Adams County 0.538 3.52 2.98 1208 34350 08001 441603 9396
2 Alamosa Coun… -0.262 0.960 1.22 43 4478 08003 15445 142
3 Arapahoe Cou… 0.832 10.4 9.55 1819 17520 08005 572003 40558
4 Archuleta Co… 0.354 0.550 0.196 28 5091 08007 12084 19
5 Baca County 3.53 4.04 0.504 61 1511 08009 3788 15
6 Bent County -6.45 2.54 9.00 46 1808 08011 6499 486
7 Boulder Coun… 0.625 1.47 0.846 192 13053 08013 294567 1961
8 Broomfield C… 1.00 2.01 1.01 22 1095 08014 55889 415
9 Chaffee Coun… -1.21 0.567 1.78 37 6521 08015 17809 264
10 Cheyenne Cou… 3.15 3.44 0.289 38 1106 08017 1836 4
# … with 54 more rows, and 1 more variable: total_pop_over17 <dbl>5.5 Compute summary statistics for the bias index
Now that we have our county-level measure of the bias index, let’s document the spatial distribution of “bias_index” with respect to counties. A simple way to do so would be to compute some basic summary statistics for the “bias_index” variable in co_counties_census_trafficstops, which will give us a sense of how the bias index varies across counties. We can generate these summary statistics using the summary() function.
Below, the argument to the summary() function, which reads co_counties_census_trafficstops$bias_index, specifies that we want summary statistics for the “bias_index” variable that is in co_counties_census_trafficstops:
# Produces summary statistics for "bias_index" variable calculated above
summary(co_counties_census_trafficstops$bias_index) Min. 1st Qu. Median Mean 3rd Qu. Max. NA's
-9.8430 0.1978 0.4727 0.5278 0.9832 4.2589 2 This table of summary statistics shows that the mean bias index across counties during 2010 was 0.53 and the median value of the bias index was 0.47; this clearly suggests that even though the bias index for the state as a whole was negative, there were many counties with a positive bias index. In other words, many Colorado counties appear to have been stopping black motorists at disproportionately high rates relative to their share of the county population. Moreover, there is a fairly large range in the bias index with respect to counties; the county with the largest value for “bias_index” had an index of 4.26 (i.e. the share of Black motorists stopped by the police was 4.26 percentage points higher than the share of Black county residents in the over-17 age demographic), while the county with the smallest value for the index had an index value of -9.84 (i.e. the share of Black motorists stopped by police was 9.84 percentage points lower than the share of Black county residents in the 17+ age demographic). These basic results suggest that a few outlier parts of the state where racial bias (as we are measuring it here) does not appear to be a problem are driving down the state’s overall bias index, despite the fact that in many areas of Colorado, Black motorists are indeed subject to disproportionately aggressive policing.
One way to quickly explore this possibility further might be to create a quick visualization that conveys county-level variation in the bias index. In Section 5.6, we’ll visualize this county-level variation in the bias index on a simple graph.

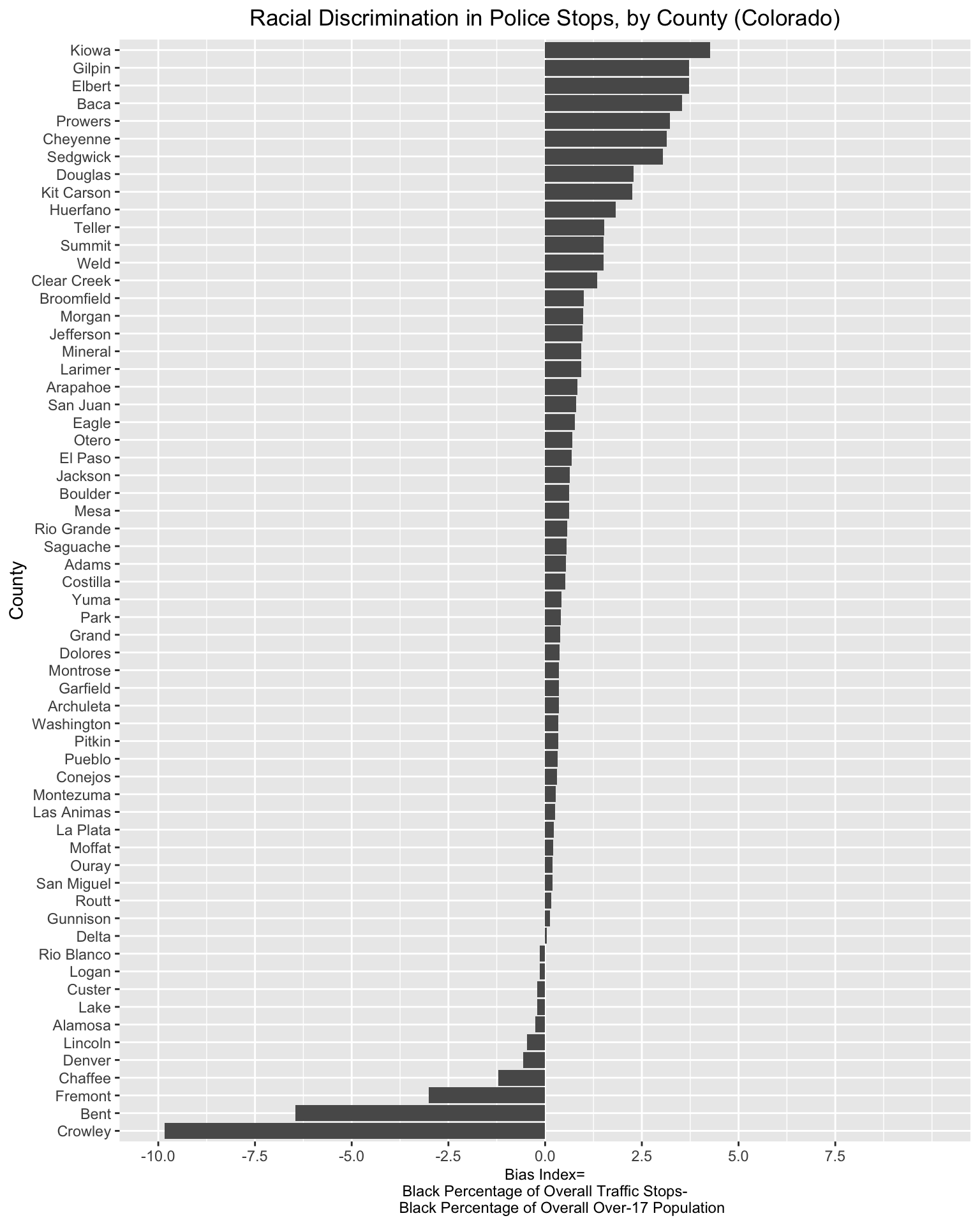

5.6 Visualize county-level variation in the bias index using ggplot
There are many possible ways to visualize county-level variation in the “bias_index” variable. Here, we’ll make a simple bar graph using ggplot2, a popular visualization package that is part of the tidyverse suite of packages.
Before making this graph, let’s quickly make a new column in co_counties_census_trafficstops, named “County”, that takes the information in the existing “county_name” field and removes the part of the string that reads “County”. This will result in a cleaner-looking graph, since we can more concisely convey that our geographic units are counties in the graph’s main title.
The following code takes the dataset currently assigned to theco_counties_census_trafficstops object, and then uses the mutate() function to create a new field named “County”, which is populated by taking the existing “county_name” column and using the str_remove() function to remove the part of the “county_name” string that reads “County”. It then assigns the modified dataset back to the co_counties_census_trafficstops object, which overwrites the previous version of the dataset:
# Creates new variable named "County" that removes "County" string
# from "county_name" variable
co_counties_census_trafficstops<-
co_counties_census_trafficstops %>%
mutate(County=str_remove(county_name, " County"))Let’s confirm that the new “County” field has been successfully created:
# prints "co_counties_census_trafficstops"
co_counties_census_trafficstops# A tibble: 64 × 11
# Rowwise: county_name
county_name County bias_index black_stop_pct black_pop_pct black_stops total_stops GEOID total_pop
<chr> <chr> <dbl> <dbl> <dbl> <int> <int> <chr> <dbl>
1 Adams County Adams 0.538 3.52 2.98 1208 34350 08001 441603
2 Alamosa County Alamosa -0.262 0.960 1.22 43 4478 08003 15445
3 Arapahoe County Arapahoe 0.832 10.4 9.55 1819 17520 08005 572003
4 Archuleta County Archuleta 0.354 0.550 0.196 28 5091 08007 12084
5 Baca County Baca 3.53 4.04 0.504 61 1511 08009 3788
6 Bent County Bent -6.45 2.54 9.00 46 1808 08011 6499
7 Boulder County Boulder 0.625 1.47 0.846 192 13053 08013 294567
8 Broomfield County Broomfield 1.00 2.01 1.01 22 1095 08014 55889
9 Chaffee County Chaffee -1.21 0.567 1.78 37 6521 08015 17809
10 Cheyenne County Cheyenne 3.15 3.44 0.289 38 1106 08017 1836
# … with 54 more rows, and 2 more variables: total_black_pop_over17 <dbl>, total_pop_over17 <dbl>Now, we’re ready to use ggplot2 to make our bar graph.

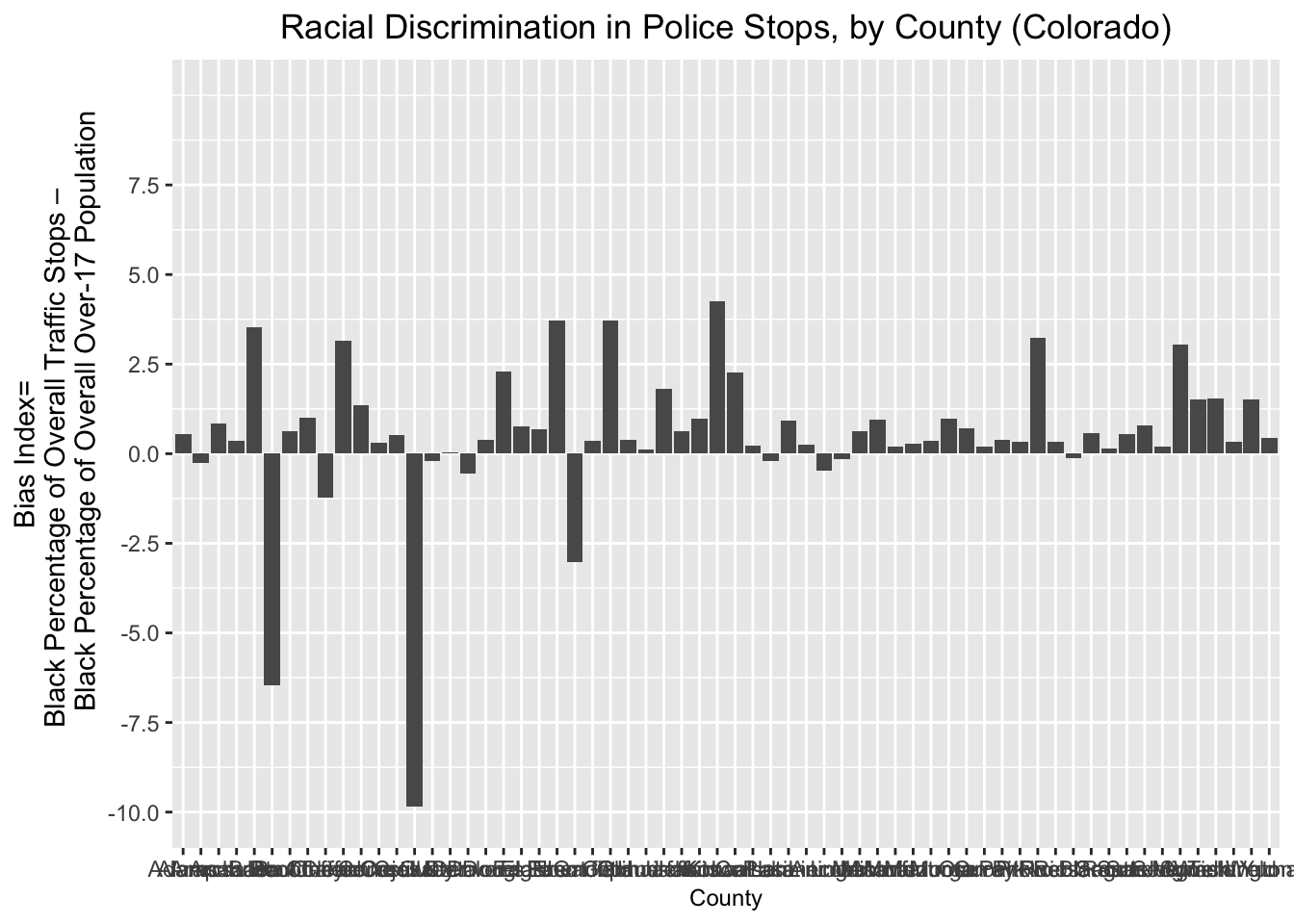

The following code takes co_counties_trafficstops, and then:
- Uses the
drop_na()function to remove counties for which the “bias_index” value has an “NA” value (there are two such counties), so that they do not show up on the graph. - It then initiates ggplot2 by calling the
ggplot()function. - It then uses the
geom_col()function to indicate that the desired output is a bar graph. Within thegeom_col()function, the expression that readsaes(x=County, y-bias_index)specifies which variables we want to represent on the graph, and how we want to represent those variables (i.e. which variable do we want on the x- axis, and which variable on the y-axis?). The instructions used to translate the variables in a tabular dataset into a visual representation are known as an “aesthetic mapping”, which is abbreviated within the grammar of ggplot2 toaes. - After specifiying that we want a bar graph based on the
co_counties_census_trafficstopsobject (with the “County” column mapped to the x-axis and the “bias_index” column mapped to the y-axis), we use thelabs()function (short for “labels”) to designate the graph’s main title, and the labels for the x and y axes. - In ggplot2, the
theme()function is a versatile function that helps to customize the appearance of a ggplot2 object; here, we set theaxis.title.xargument equal toelement_text(size=9), which effectively sets the size of the x axis labels. In addition, we set theplot.titleargument within thetheme()function equal toelement_text(hjust=0.5), which effectively center-justifies the plot’s main title. Next, we use thescale_y_continuous()function to set the interval breaks of the y-axis; this range is defined using a vector passed to thebreaksargument, where each numeric element of the vector denotes a desired interval break. - The
expand_limits()function allows us to expand the range of either axis beyond the range established by the axis interval markers; here, by specifyingy=c(-10,10)as an argument to theexpand_limits()function, we effectively stretch out the y-axis range from -10 to 10, even though the highest Y-axis tick-mark is set at 7.5. - Finally, we assign the plot that is created with this code to a new object named
bias_graph:
# Uses ggplot2 to create bar graph of "bias_index" variable, with "bias_index"
# on Y-axis and counties on X-axis
bias_graph<-
co_counties_census_trafficstops %>%
drop_na(bias_index) %>%
ggplot()+
geom_col(aes(x=County, y=bias_index))+
labs(title="Racial Discrimination in Police Stops, by County (Colorado)",
x="County",
y="Bias Index=\nBlack Percentage of Overall Traffic Stops –
Black Percentage of Overall Over-17 Population")+
theme(axis.title.x = element_text(size = 9),
plot.title=element_text(hjust=0.5))+
scale_y_continuous(breaks=c(-10, -7.5, -5, -2.5, 0, 2.5, 5, 7.5))+
expand_limits(y=c(-10,10))Let’s print the contents of bias_graph and see what the plot looks like; it will appear in the “plots” tab on the bottom-right of your R Studio interface.
# Prints contents of "bias_graph"
bias_graph
As we can see, the graph does show that certain counties have values around zero, or well below zero on the bias index, which drives down the overall value for the state; but in many other counties, the value of the “bias_index” variable is positive and substantively large.
While this graph does convey valuable information, it’s a little bit confusing to look at; for example, the county names are squished together in a way that makes them unreadable.
A quick way to make the plot more readable is to invert the axes (such that counties are on the y-axis, and the bias index is arrayed along the x-axis). The code below is largely the same as the code in the previous code block. The differences are twofold, and contribute to a change in the map’s appearance. First, the argument to
geom_col looks a bit different. Instead of simply specifying (aes(x=County, y=bias_index), we instead specify (aes(x=reorder(County, bias_index), y=bias_index). The reorder() function is essentially specifying that we want the x-axis variable (“County”), to be arrayed in descending order with respect to “bias_index”. Arraying the values in descending order makes for a graph that is easier to read. Second, we call the coord_flip() function, which inverts the axes such that the x-axis and y-axis (specified as arguments to geom_col()) are inverted. We’ll assign this new plot to a new object named bias_graph_inverted:
# Uses ggplot to create bar graph of "bias_index" variable, with "bias_index"
# on X-axis and counties on y-axis; assigned to object named
# "bias_graph_inverted"
bias_graph_inverted<-
co_counties_census_trafficstops %>%
drop_na(bias_index) %>%
ggplot()+
geom_col(aes(x=reorder(County, bias_index), y=bias_index))+
coord_flip()+
labs(
title="Racial Discrimination in Police Stops, by County (Colorado)",
x="County",
y="Bias Index=\nBlack Percentage of Overall Traffic Stops-
Black Percentage of Overall Over-17 Population")+
theme(axis.title.x = element_text(size = 9),
plot.title=element_text(hjust=0.5))+
scale_y_continuous(breaks=c(-10, -7.5, -5, -2.5, 0, 2.5, 5, 7.5))+
expand_limits(y=c(-10,10))Let’s view the revised plot:
# prints contents of "bias_graph_inverted"
bias_graph_inverted
We can see that those relatively small changes produced a more readable and informative plot. We can get a clear sense of how the traffic stops bias index varies across Colorado counties, and identify the counties where policing practices appear excessively punitive towards Black drivers. The plot clearly conveys why focusing solely on aggregated statistics might be problematic: such aggregated measures have the potential to obscure more granular patterns of bias across a state’s jurisdictions.
